Description

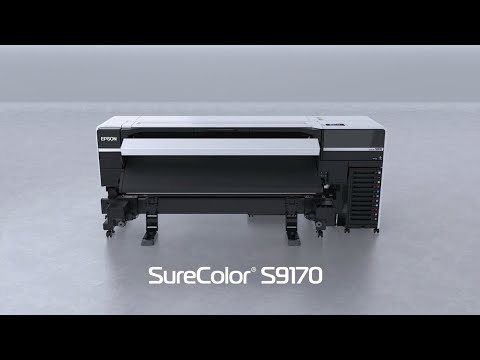

The Epson SureColor S9170 is a next-generation 64" eco-solvent printer designed to meet the highest demands of color-critical signage professionals. With an 11-color UltraChrome® GS3 ink set—including Red, Orange, and a new Green—this printer reaches up to 99.5% of the PMS Formula Guide Solid Coated (2022 Edition) and enables same-day lamination thanks to ultra-fast drying times. Its compact, efficient footprint, along with a user-replaceable printhead and easy maintenance features, make the S9170 a powerful solution for fast-paced, high-volume production environments.
Key Features
- 11-color UltraChrome GS3 ink set with new Green ink—massive color gamut and high accuracy
- PrecisionCore® Micro TFP® printhead with automatic nozzle verification and maintenance
- Reaches 99.5% of PMS Formula Guide Solid Coated (2022 Edition)
- Same-day lamination with fast-drying GS3 inks
- First user-replaceable solvent printhead in its class
- Compatible with 800ml or 1.5L ink packs for extended production runs
- 4.3” color LCD touchscreen for intuitive control
- Compact, modern design that fits seamlessly in most print shops
- Included ONYX® Go Plus and Epson Edge® Print Pro RIP software
| PRINTER WIDTH | 64" |
| MAXIMUM PRINTABLE AREA | 63.5" |
| MAXIMUM PRINT RESOLUTION | 1200 x 1200 dpi |
| PRINT TECHNOLOGY | PrecisionCore Micro TFP printhead, variable droplet technology |
| INK CONFIGURATION | CMYK, Lc, Lm, Lk, Or, R, G, W |
| INK CAPACITY | 800 mL or 1.5 L ink packs |
| MEDIA WIDTH | 11.81" to 64" |
| ROLL WEIGHT CAPACITY | Up to 99.21 lbs (45 kg) |
| CONTROL PANEL | 4.3" optical touch color LCD |
| CONNECTIVITY | USB 3.0, Ethernet (100Base-TX/1000Base-T) |
| POWER CONSUMPTION | Operation: Approx. 1190W, Sleep: Approx. 3.4W |
| DIMENSIONS (W × D × H) | 102.2" x 39.2" x 40.2" |
| WEIGHT | 754 lbs |
| SOFTWARE INCLUDED | ONYX® Go Plus, Epson Edge® Print Pro |
| WARRANTY | 1-year limited warranty |
Downloads
Epson SureColor S9170 Data Sheet
Need a Quote, Price Match, or Virtual Demo?
Contact our team for more info about the Epson S9170, pricing, or to schedule a virtual demo. Chat with us on our website, call us at (800) 527-7778, or fill out the form below. We’ll get back to you right away.
