Description

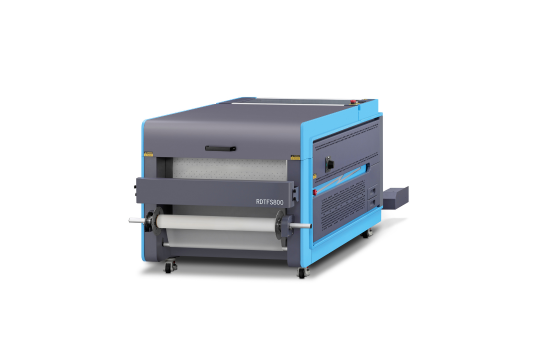

Automate your workflow with the Roland DG Approved DTF Shaker Oven. Designed to meet the specific requirements for the TY-300, the RDTFS800 pairs up perfectly to achieve high-quality, production level output. Roland DG provides specific settings to pair the devices in any print mode with perfect finish results.
This listing is only the RDTFS800 Inline Powder Shaker Dryer. If you are interested in only the Roland TY-300 Printer, look here. If you are interested in the TY-300 Printer and RDTFS800 Shaker Dryer bundle, look here.
Specifications
- Dual catch trays allow for long run, unattended printing from roll-to-roll for optimized production efficiency
- Included with an alignment fixture to ensure perfect prints even on full roll unattended printing and simple set up
- Built-In fume extraction system to save space while providing user safety requirements
The Process
- The film exits the printer and is guided into the shaker unit via the pre-heater platen. Once inside, the printed film undergoes a dusting and powder application process in the powder bin
- Excess powder is collected in dual trays and recycled into the top hopper for reuse
- The powdered film is then transferred to the heating section, where it travels along the platen
- Under heat, the powder melts and solidifies onto the film
- As the solidified film exits the heater section, it is cooled by an exit media fan and wound onto the media take-up unit.The completed roll of film can then be removed, ready for final distribution and heat pressing
Popular Applications
- Custom T-Shirts and Sportswear
- Fabric Accessories
- Footwear
- Home Textiles
| MODEL | RDTFS800 |
| WORKING ENVIRONMENT - POWER ON | 18 to 30℃ (64.4 to 86°F), 24℃ (75°F) recommended. Humidity 30% to 70%, 50% recommended |
| POWER CONSUMPTION - OPERATING STATE | 4000W |
| POWER CONSUMPTION - STANDBY STATE | 400W |
| ELECTRICAL REQUIREMENTS | AC200-240v @ 50/60Hz, current = 16A x 1 (Single Phase) |
| PRODUCT SIZE | Length: 1930mm (76in), Width: 1360mm (53.5in), Height: 1010mm (40in) |
| PRODUCT WEIGHT | 842lbs (382kg) |
| PACKAGE SIZE | Length: 1990mm (78.4in), Width: 1360mm (53.5in), Height: 1270mm (50in) |
| PACKAGE WEIGHT | 1049lbs (476kg) |
| CONSUMABLES | HEPA Filter: #300000003, Carbon Filter: 300000002 |
| MAXIMUM FEEDING SPEED | >30m2/hr |
| MEDIA REWINDER - MAXIMUM MEDIA WEIGHT | 220lbs (100kg) |
| MEDIA REWINDER - MAXIMUM MEDIA DIAMETER | 200mm (7.87in) |
| SAFE DESIGN | Emergency stop button open, media and powder sensors |
| FILTER / SMOKE EXHAUST FUNCTION | Built-in filtre element, user-replaceable, lifespan is about 6 months. Embedded HEPA, user replaceable, roughly 6 to 12 months life depending on use |
| LANGUAGE SUPPORT | English, Japanese, Chinese, Korean, Spanish, French, and Portuguese as standard |
