Description

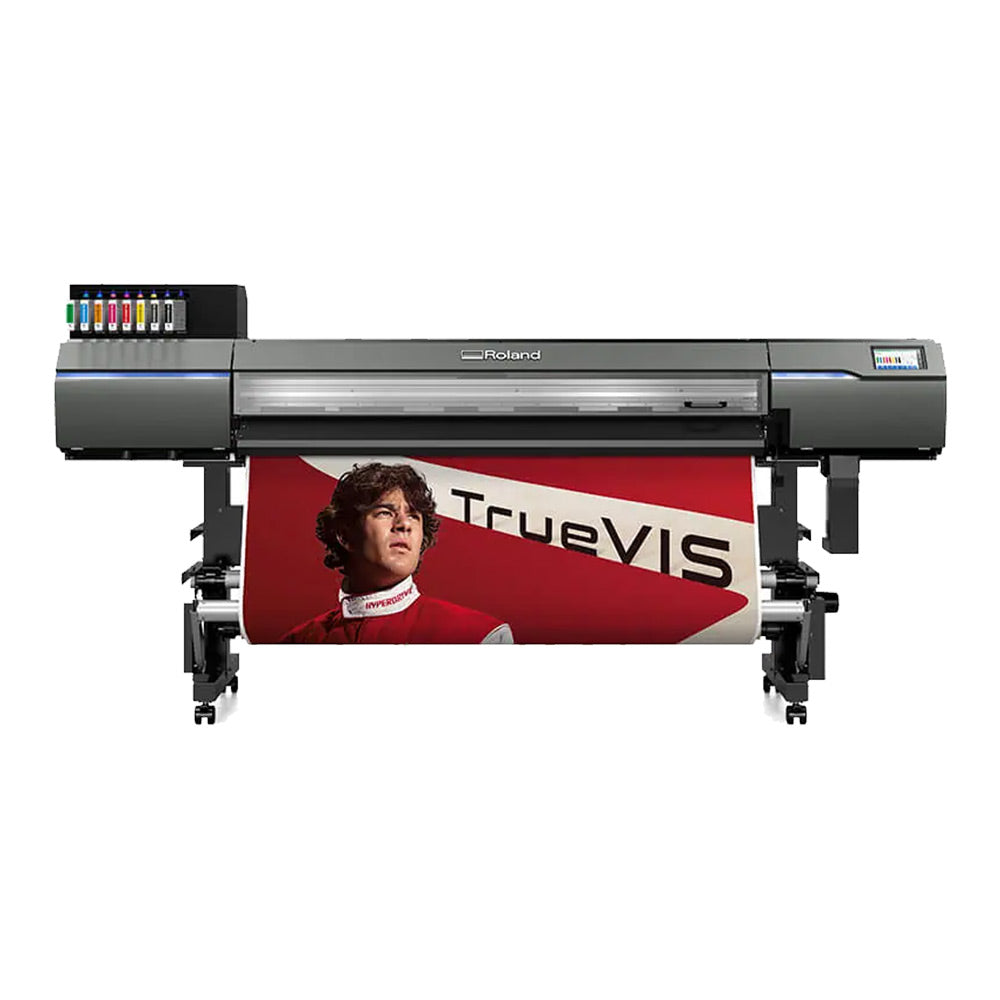

The Roland TrueVIS XP-640 is a next-generation, large-format eco-solvent printer designed to deliver high-volume output with precision and efficiency. Featuring dual staggered printheads and an expanded 8-color ink configuration—including new Red ink—the XP-640 offers superior color range, fine detail, and vibrant results across a wide variety of applications. Built for speed and performance, it’s a smart solution for shops looking to increase productivity while keeping operating costs low.
Specifications
- Dual staggered printheads deliver high-resolution output with fewer passes and faster speeds
- Expanded 8-color configuration (CMYK, Light Black, Green, Orange, Red) increases color gamut and accuracy
- Includes advanced usability features like perforated sheet cutting and a 7-inch touchscreen control panel
- Offers fast print speeds—up to 819 sqft/hr with dual CMYK—ideal for high-volume production environments
- TH inks deliver vibrant output with low ink consumption and are GREENGUARD Gold certified
- Comes with VersaWorks 6 RIP software and Roland DG Connect app for seamless print management
Popular Applications
- Banners and Event Graphics
- Vehicle Wraps and Fleet Graphics
- Window, Wall, and Floor Graphics
- Backlit Displays and Billboards
- Custom Signage and Stickers
| MODEL | XP-640 |
| PRINT METHOD | Piezo Inkjet |
| MAX MEDIA WIDTH | 64 in. (1,625 mm) |
| MAX PRINT WIDTH | 63.5 in. (1,615 mm) |
| PRINT HEAD | Dual Staggered |
| MAX RESOLUTION | 1,800 dpi |
| INK TYPE | TH Eco-Solvent Ink (500 ml) |
| COLOR CONFIGURATIONS | 8-color: CMYKLkOrGrRe or 4-color: CMYK |
| CONNECTIVITY | Ethernet (100/1000BASE-T) |
| USER INTERFACE | 7-inch Full Color Touchscreen |
| TAKE-UP UNIT | Automatic, included |
| SOFTWARE | VersaWorks 6, Roland DG Connect |
| POWER CONSUMPTION | Operation: 1,180W / Sleep: 50W |
| DIMENSIONS (WxDxH) | 113.7 in. x 29.5 in. x 55.8 in. |
| WEIGHT | 417 lb. (189 kg) |
Downloads
Roland XP-640 Eco-Solvent Printer Data Sheet
