Description

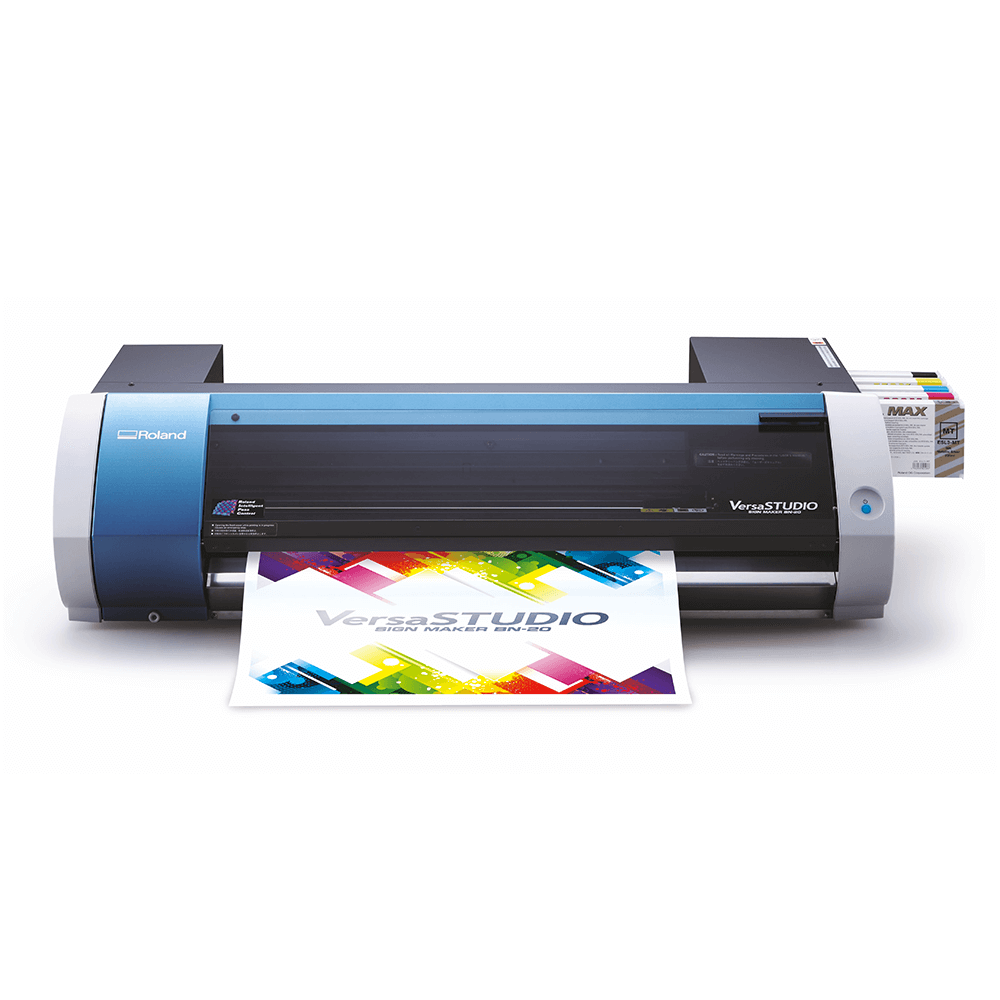

With the VersaSTUDIO BN-20D, you get the outstanding features and legendary reliability of Roland DG’s best-selling BN-20, plus the advantages of an integrated direct-to-film system. The BN-20D makes enhancing apparel with eye-catching graphics – even the most detailed designs, images and text – a simple, trouble-free process. Create eye-catching durable custom T-shirts and more in just four easy steps, with no weeding or masking required.
Features
- Simple direct-to-film process - transfer even detailed graphics and fine text quickly and easily without weeding or masking.
- Complete direct-to-film solution featuring the BN-20D printer and available S-PG inks, S-F164 film, and S-Powder (each sold separately).
- Unsurpassed reliability and minimal maintenance
- When not being used for film transfer printing, the BN-20D can also serve as a stand-alone vinyl cutter.
- Included VersaWorks 6 RIP software - Roland DG's most powerful, intuitive RIP to date.
Applications
- T-shirts
- Tote bags
- Aprons and more
| MODEL | BN-20D |
| ACCEPTABLE MEDIA WIDTHS | 5.9 to 20.3 in. (150 to 515 mm) |
| ACCEPTABLE MEDIA ROLL WEIGHT | Maximum 13.2 lbs (6 kg) |
| ACCEPTABLE MEDIA ROLL OUTER DIAMETER | Maximum 5.9 in (150 mm) |
| ACCEPTABLE MEDIA CORE DIAMETER | 2 in (50.8 mm)or 3 in (76.2 mm) cores |
| PRINTING WIDTH*1 | Maximum 18.9 in (480 mm) |
| INK CARTRIDGE TYPE | Pigment, 220ml cartridge |
| INK CARTRIDGE COLORS | CMYK+Wh (Cyan, Magenta, Yellow, Black, and White) |
| POWER CONSUMPTION | During Operation: Approx. 90 W, Sleep Mode: Approx. 5.5 W |
| ACOUSTIC NOISE LEVEL | During Operation: 62 dB (A) or less, During Standby: 42 dB (A) or less |
| DIMENSIONS/WEIGHT | 39.7" W x 22.9" D x 11.5" H (1,009 W x 582 D x 293 H mm), 79.4 lbs (35 kg) |
| OPERATING ENVIRONMENT | Power on: Temperature: 68o - 90o F (20 to 32o C), humidity: 35 - 80% RH (non condensing), Power off: Temperature: 41o - 104o F (5 to 40o C), humidity: 20 - 80% RH (non condensing) |
