Description

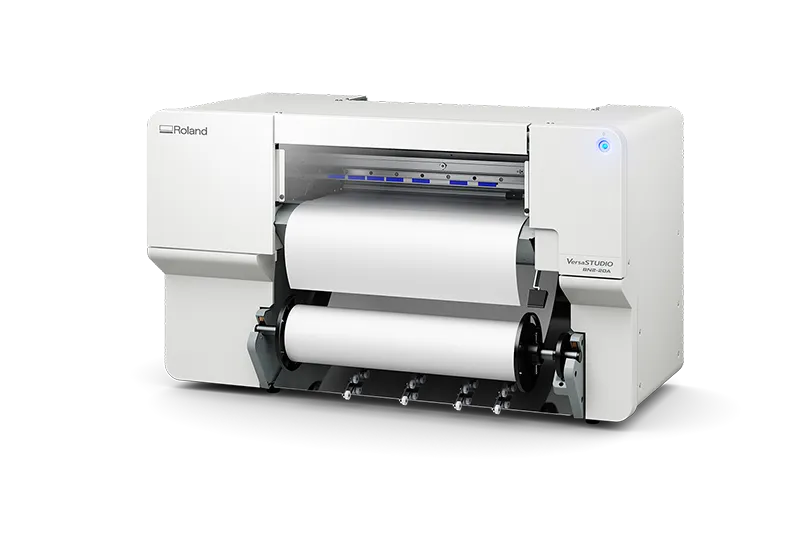

With the next-generation BN2, Roland DG has taken a great thing and made it even better. These compact powerhouses offer significantly faster print speeds, convenient new features, ease of use, and a space-saving design that allows for placement in a home, office, or shop. The BN2 is everything you need to get started in professional print and cut graphics production. The VersaSTUDIO BN2-20A features a 4 color, CMYK ink configuration, along with a maximum media width of 20".
Features
- Professional quality printing and cutting functionality allows for a wide range of applications
- Faster print speeds for optimum productivity
- Affordably priced to suit the budgets of start-ups, & smaller businesses
- Easy to use – even for those with no prior printing experience
- Compact size is ideal for print environments with limited space
- Feature-filled, intuitive design and output software included
Applications
- Apparel
- Decals and Labels
- Small Signs and Posters
- Art and Photography
| MODEL | BN2-20A |
| PRINTING METHOD/CUTTING METHOD | Piezoelectric inkjet |
| ACCEPTABLE MEDIA WIDTHS | 5.91 to 20.2 in. (150 to 515 mm) |
| ACCEPTABLE MEDIA THICKNESS | Printing: Maximum 39.3 mil (1.0 mm) with liner, Cutting: Maximum 15.7 mil (.4 mm) with liner |
| ACCEPTABLE MEDIA ROLL WEIGHT | Maximum 13.2 lbs (6 kg) |
| ACCEPTABLE MEDIA ROLL OUTER DIAMETER | Maximum 5.9 in (150 mm) |
| ACCEPTABLE MEDIA CORE DIAMETER | 2 in (50.8 mm)or 3 in (76.2 mm) cores |
| PRINTING/CUTTING WIDTH*1 | Maximum 18.9 in (480 mm) |
| INK CARTRIDGE TYPE | Roland ECO-SOL MAX2 |
| INK CARTRIDGE COLORS | CMYK (Cyan, Magenta, Yellow, Black) |
| PRINTING RESOLUTION | Max 1440 dpi |
| CUTTING BLADE TYPE | Roland CAMM-1 series cutter blade |
| CUTTING SPEED | 0.4 (10 mm/s) to 5.9 in/s (150 mm/s) |
| CUTTING BLADE FORCE | 30 to 500gf |
| CONNECTIVITY | Ethernet (100BASE-TX/1000BASE-T, automatic switching) |
| POWER CONSUMPTION | During Operation: Approx. 185 W, Sleep Mode: Approx. 27 W |
| ACOUSTIC NOISE LEVEL | During Operation: 62 dB (A) or less, During Standby: 60 dB (A) or less |
| DIMENSIONS/WEIGHT | 42.1 in. × 24.3 in. × 24.5 in. (1,069 mm × 617 mm × 622 mm) 137 lb. (62 kg) |
| OPERATING ENVIRONMENT | Power on: Temperature: 68 to 89.6 °F (20 to 32 °C), humidity: 35 to 80 % RH (no condensation), Power off: Temperature: 41 to 104 °F (5 to 40 °C), humidity: 20 to 80 % RH (no condensation) |
| INCLUDED ITEMS | Dedicated stands, power cord, Media take-up unit, media holders, replacement blade for separating knife, User's Manual, Software (FlexiDESIGNER VersaSTUDIO Edition, VersaWorks, Roland DG Connect), etc. |
Downloads
Roland VersaStudio BN2-20A Printer Cutter Brochure
