Description

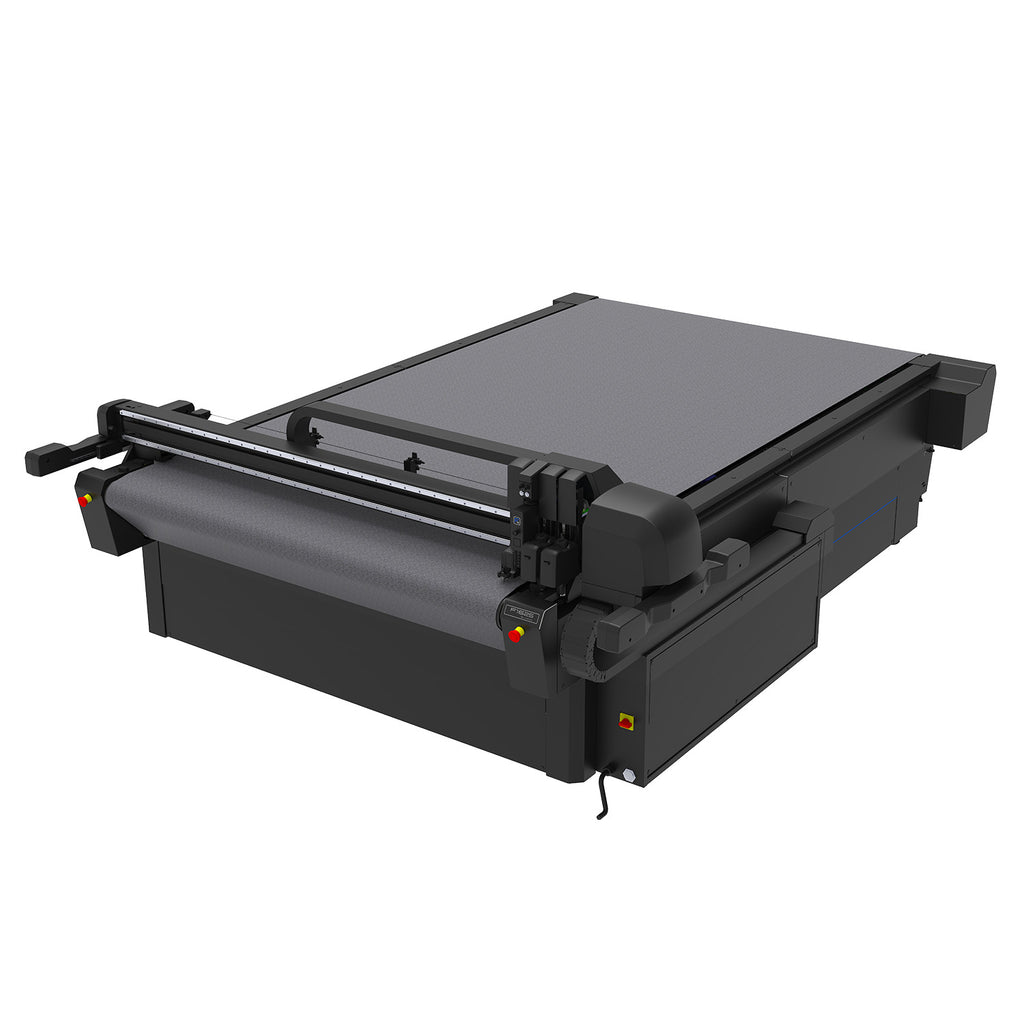

Introducing the next evolution in flatbed cutting precision.
The Summa F1625 delivers a new size option to the industry-leading F Series line — designed for exceptional accuracy, durability, and modular workflow versatility.
Compatible with existing F Series tools, the F1625 features a user-friendly tandem workflow zone, automatic tool recognition and calibration, and seamless GoProduce software integration for streamlined wide-format finishing.
The F1625’s 63" x 98" working area easily accommodates standard 4' x 8' materials without feeding, and its dual-pump vacuum system ensures maximum hold-down for both roll and rigid media cutting.
Whether you're cutting flexible vinyls, thick boards, or specialty materials, the F1625 is built to meet the demands of growing sign, display, and graphics businesses.
Specifications
| MODEL | Summa F1625 |
| CUTTING AREA | 63 in. (160 cm) wide x 98 in. (250 cm) long |
| MEDIA WIDTH | Up to 65 in. (1650 mm) |
| MULTI PANEL* | 164 ft. (50 m) *Media clamps and roll-feed and/or conveyor belt system are required |
| REPEATABILITY | Within ±0.05 mm on plots |
| ACCURACY | 0.05% of move or 0.05 mm, whichever is greater |
| SPEED | Up to 39.4 in./sec (1000 mm/sec) |
| ACCELERATION | Up to 1 G |
| CLEARANCE* | 1.9 in. (50 mm) *Distance between vacuum table and Y-beam, excluding cutting mat or conveyor belt |
| MAXIMUM ALLOWED FORCES | Vertical: 120 Newton, Horizontal: 200 Newton |
| MAXIMUM TABLE LOAD | 20.5 lb/ft² (100 kg/m²) |
| CONNECTIVITY | USB |
| POWER REQUIREMENTS | 3 Phase 208V+N, 60Hz, max 30A |
| DIMENSIONS | 97.2 x 131.1 x 43.3 in. (2470 x 3330 x 1100 mm) |
| WEIGHT | TBD |
| OPERATING TEMPERATURE | 59˚ to 95˚F (15˚ to 35˚C) |
| STANDARD ACCESSORIES | Drag Module, Conveyor System, Roll-Feed System, Safety System 2020, Pneumatic Pack, ADC left & right, standard 36˚ blade holder, 1 standard blade, 1 fiber-tip pen, hex screwdrivers, USB cables, media guide flanges (set of 2), Summa GoProduce software. |
| OPTIONAL ACCESSORIES | Tangential Module, F Series Routing System, HF Routing System, HT Rotary module, Electronic Oscillating Tool, Pneumatic Oscillating Tool, Kiss Cutting Tool, Single Edge Cutout Tool, Double Edge Cutout Tool, Heavy Duty Cutout Tool, Creasing Tools, V-Cut Tools, basket, sheet feed system, wireless controller with charger. |
| WARRANTY (USA) | Two-year parts and labor limited warranty, toll-free technical support |
