Description

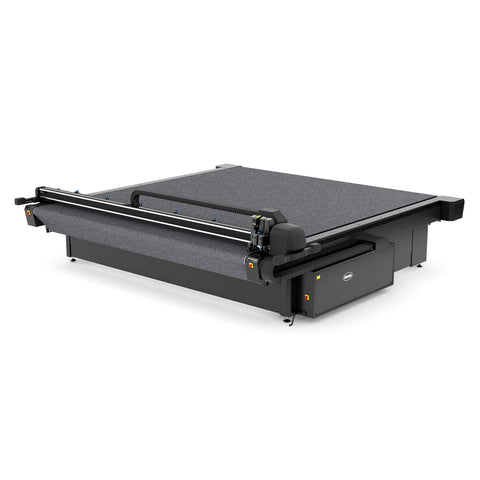

Introducing the most versatile flatbed cutting system ever.
The F Series is a completely new cutting product line based on over a quarter century of plotting manufacturing expertise.
Up to three tools can be inserted at one time into the multi-module tool holder. And changing those tools is quick and easy, thanks to the simple, single-point fastening system. Automatic tool recognition, combined with digital and mechanical depth / pressure control, ensures precision cutting on a vast array of materials.
The base unit comes standard-equipped with an ultra-fast drag knife module, plus Summa's revolutionary OPOS-CAM optical camera marker recognition system for unparalleled contour cutting accuracy.
Multiple material-handling options assure optimal efficiency, whether cutting printed, flexible or rigid substrates. An ever-expanding arsenal of add-ons allows you to custom-tailor the machine to perfectly match a specific workflow.
An all-new Router System capable of milling all of the most common hard boards / thicker substrates has been added, as well as a Pneumatic Oscillating Tool that is so durable and powerful it breezes through many of the most challenging cutting situations.
Specifications
| MODEL | Summa F3232 |
| CUTTING AREA | 128.7 in. (327 cm) wide x 126 in. (320 cm) long up to 164 ft. (50 m) long in multi panel |
| MEDIA WIDTH | Up to 131 in. (332 cm) |
| MULTI PANEL* | 1968 in. (5000 cm) *Media clamps and roll-feed and/or conveyor belt system are required |
| REPEATABILITY | Within +/- 0.05 mm on plots |
| ACCURACY | 0.05 % of move or 0.05 mm, whichever is greater |
| SPEED | Up to 39.4 in./sec (1000 mm/sec) |
| ACCELERATION | Up to 1 G |
| CLEARANCE* | 1.9 in. (5 cm) *Distance between vacuum table and Y-beam. Not taking into account the thickness of a cutting matt or conveyor belt |
| MAXIMUM ALLOWED FORCES | Vertical: 200 Newton, Horizontal: 200 Newton |
| MAXIMUM TABLE LOAD | 10.2 lb/ft2 (50 kg/m2) |
| CONNECTIVITY | USB |
| POWER REQUIREMENTS | 3 Phase 208V+N or 3 Phase 230V or 3 Phase 400V+N |
| DIMENSIONS | 166 x 166x 48 in. (422 x 422 x 122 cm) – without roll support |
| WEIGHT | 4347 lbs (1974kg) |
| OPERATING TEMPERATURE | 59˚ to 95˚F (15˚ to 35˚C) |
| STANDARD ACCESSORIES | Drag Module, Conveyor System, Roll-Feed System, Safety System 2020, Pneumatic Pack, ADC left & right, standard 36˚ blade holder, 1 standard blade, 1 fiber-tip pen, hex screwdriver (4mm), hex screwdriver (2.5mm), USB cable (3 meter), USB extension cable (0.5 meter), media guide flanges (set of 2), Summa GoProduce software. |
| OPTIONAL ACCESSORIES | Tangential Module, F Series Routing System, HF Routing System, HT Rotary module, Electronic Oscillating Tool, Pneumatic Oscillating Tool, Kiss Cutting Tool, Single Edge Cutout Tool, Double Edge Cutout Tool, Heavy Duty Cutout Tool, Creasing Tools, V-Cut Tools, production software, basket (F1612), extension tables (F1612), wireless controller w/ charger. |
| WARRANTY (USA) | Two-year parts and labor limited warranty, toll-free technical support |
