Description

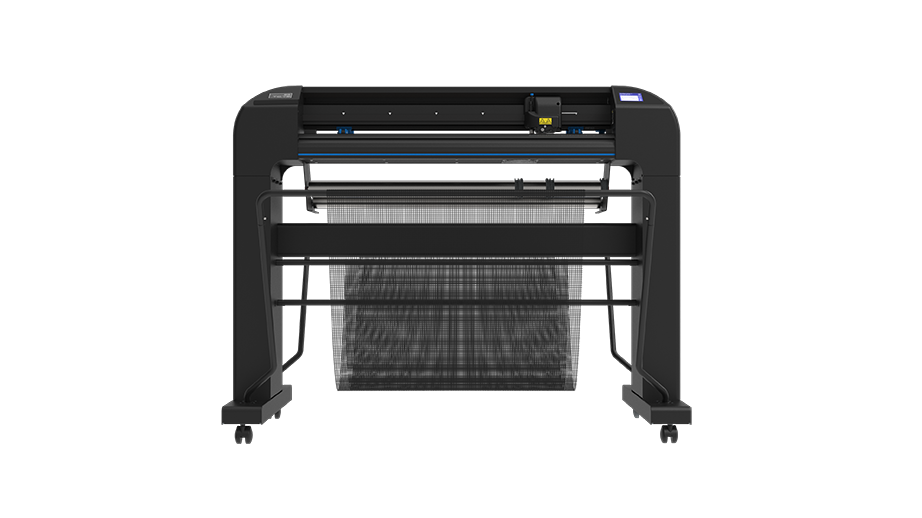

As the smallest roll cutter in the S3 series, the Summa S3 D75 is thoughtfully designed to cater to every user's needs, from beginners to seasoned professionals. With the capability to handle media up to 29.2in (+2.8in in oversized mode), it is perfectly tailored for flex and flock users, as well as label-cutting professionals.
Designed specifically for high-volume cutting environments, Summa’s D Series unites power and precision with an efficient and affordable high-speed drag knife cutting head. The D Series roll-fed cutter is a do-it-all dynamo with the resilience to perform day in and day out.
Elevating efficiency, the Smart Object Sorting feature is designed to select the most optimal starting point for cutting objects, every single time. In addition, the unique Smart Paneling function improves cutting accuracy and simplifies post-processing. When paneling is, for example, set to 18in, all objects within this range are cut at once.
Included with the machine is the powerful Summa GoSign software. GoSign allows you to manage your preferred workflow straightforwardly and with great flexibility.
Tailored for busy vinyl and digital print shops, Summa S Class cutters boast a well-established track record of dependability, ingenuity, and impressive results – all accompanied by unparalleled tracking precision. In situations demanding quick turnarounds and perfect cuts, the S3 D Series truly excels.
| MODEL | Summa S3 D75 |
| CUT TYPE | Drag knife with TurboCut and Tangential Emulation Modes |
| CUT WIDTHS | 29.2 in. (74.2 cm) (Oversized Mode: +/2.36 in) |
| CUT SPEED | All S3 models cut at speeds up to 56 inches (1414 mm) per second diagonal |
| ACCELERATION | Up to 3 G diagonal |
| ACCURACY | 0.2 % of movement or 0.010 in, whichever is greater |
| TRACKING PERFORMANCE | 26 ft max. within guaranteed specifications for media less than 30 in. 13 ft max. within guaranteed specifications for media larger than 30 in. |
| CUT FORCE | Up to 600 grams of cutting force |
| DISPLAY LANGUAGES | English; French; German; Dutch; Italian; Spanish; Polish; Czech; Latvian; Portuguese |
| CONNECTIVITY | USB; Ethernet, Wifi (region dependent) |
| POWER REQUIREMENTS | 100-240 VAC, 50/60 Hz |
| DIMENSIONS | 44.1 (W) x 27.7 (D) x 43.8 (H) in. 112 (W) x 70 (D) x 111 (H) cm |
| SHIPPING WEIGHT | 152 lbs (69 kg) |
| OPERATING TEMPERATURE | 59˚ to 95˚F (15˚ to 35˚C) |
| STANDARD ACCESSORIES | WinPlot or MacSign Cut Software, CutterControl Parameter Software, CD w/ Manuals and Drivers, Quick Start Guide, Power Cable, USB Cable, Media Guide Flanges (set of 2), 1 Spare Fuse, Blade Holder, Standard Nose Piece, 2 Standard 36° Tangential Blades, Thick Material Nose Piece, 1 Thick 60° Blade, Tangential Drag Holder, 1 Standard 36° Drag Blade, T Pen holder, 1 Ball point pen, 2 Cut-off Razor Blades, Blade insertion tool, Stand and Basket. |
| WARRANTY (USA) | Two-year parts and labor limited warranty, toll-free technical support |
Note: In "Oversized" mode, the tracking performance is no longer guaranteed
Downloads
Summa S Class 3 Series Vinyl Cutter Brochure
