Description
Thanks to Summa's True Tangential™ cutting head, the S Class 3T Series vinyl cutters deliver the cutting precision of a flatbed while providing the ease and speed of a roll-fed cutter.
The highly engineered tangential cutting heads on the S Class 3T Series have a unique motorized knife, allowing the cutters to achieve unparalleled accuracy and precision down to the smallest details. The True Tangential cutting technology even handles heavy sandblasts, paint masks, and reflective materials.
Elevating efficiency, the Smart Object Sorting feature is designed to select the most optimal starting point for cutting objects, every single time. In addition, the unique Smart Paneling function improves cutting accuracy and simplifies post-processing. When paneling is, for example, set to 18in, all objects within this range are cut at once.
Included with the machine is the powerful Summa GoSign software. GoSign allows you to manage your preferred workflow straightforwardly and with great flexibility.

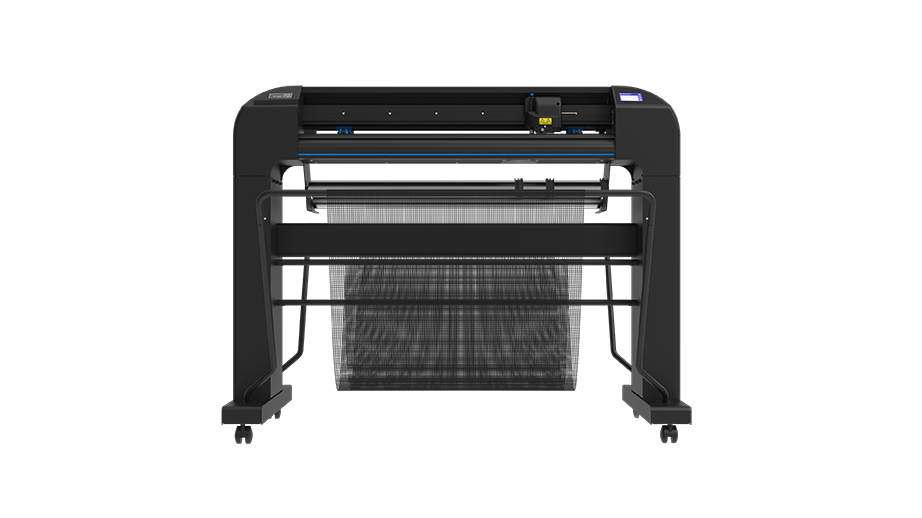

As the smallest roll cutter in the S3 series, the Summa S3 T75 is thoughtfully designed to cater to every user's needs, from beginners to seasoned professionals. With the capability to handle media up to 29.2in (+2.8in in oversized mode), it is perfectly tailored for flex and flock users, as well as label-cutting professionals.
| MODEL | Summa S3 T75 |
| CUT TYPE | True Tangential with Drag Knife Cutting Mode Capability |
| CUT WIDTHS | 29.2 in. (74.2 cm) (Oversized Mode: +/2.36 in) |
| CUT SPEED | All S3 models cut at speeds up to 56 inches (1414 mm) per second diagonal |
| ACCELERATION | Up to 4.25 G diagonal |
| ACCURACY | 0.2 % of movement or 0.010 in, whichever is greater |
| TRACKING PERFORMANCE | 40 ft max. within guaranteed specifications for media less than 30 in wide |
| CUT FORCE | Up to 1000 grams of cutting force |
| DISPLAY LANGUAGES | English; French; German; Dutch; Italian; Spanish; Polish; Czech; Latvian; Portuguese |
| CONNECTIVITY | USB; Ethernet, Wifi |
| POWER REQUIREMENTS | 100-120 / 220-240 VAC, 50/60 Hz, 85 VA maximum |
| DIMENSIONS | 55.5 (W) x 27.2 (D) x 43.7 (H) in. 141 (W) x 69 (D) x 111 (H) cm |
| SHIPPING WEIGHT | 152 lbs (69 kg) |
| OPERATING TEMPERATURE | 59˚ to 95˚F (15˚ to 35˚C) |
| STANDARD ACCESSORIES | WinPlot or MacSign Cut Software, CutterControl Parameter Software, CD w/ Manuals and Drivers, Quick Start Guide, Power Cable, USB Cable, Media Guide Flanges (set of 2), 1 Spare Fuse, Blade Holder, Standard Nose Piece, 2 Standard 36° Tangential Blades, Thick Material Nose Piece, 1 Thick 60° Blade, Tangential Drag Holder, 1 Standard 36° Drag Blade, T Pen holder, 1 Ball point pen, 2 Cut-off Razor Blades, Blade insertion tool, Stand and Basket. |
| WARRANTY (USA) | Two-year parts and labor limited warranty, toll-free technical support |
Note: In "Oversized" mode, the tracking performance is no longer guaranteed
Downloads
Summa S Class 3 Series Vinyl Cutter Brochure
