Description

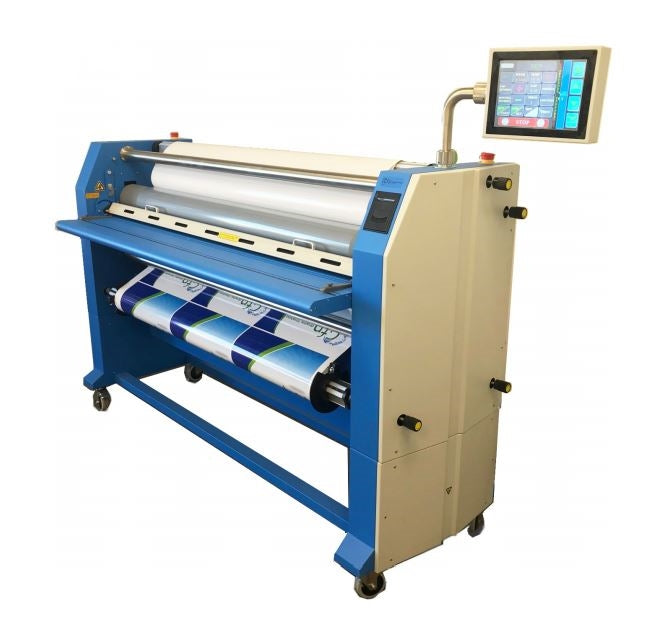

The Gfp 663TH Production Top Heat Laminator is Gfp's most advanced laminator with "Smart Finishing Technology" for the demanding wide format finishing professional.
Along with its rugged design and many built-in labor-saving features, the 663TH's electric servo motor and positioning encoder deliver precise control of roller gap position and nip pressure.
A host of production class features like integrate rear rewind, inline slitting, and swing-out shafts provide the reliable performance the finishing professionals need to ensure the highest quality output and maximum productivity.
Specifications
- Digital microcontroller system.
- Color graphic operational displays.
- Electronic roller gap / pressure control.
- Swingout unwind and rewind shafts.
- Inline rotary side slitters.
- Top roller heat assist.
- Integrated rear rewind.
- Roll label printer.
- Operator warning alerts.
- Onboard operator help tutorials.
Popular Applications
- Exterior signage
- Window graphics
- Wall graphics
- Floor graphics
- Temporary display
- Automotive
| LAMINATING WIDTH | 63" |
| ROLLER DIAMETER | 5" |
| ROLLER GAP (MAX) | 1" |
| MAIN ROLLERS | Silicone |
| SUPPLY ROLL DIAMETER (MAX) | 8" OD (top); 16" OD (bottom) |
| SUPPLY SHAFTS | 2 swing-out shafts |
| SWING-OUT SHAFT MAXIMUM WEIGHT | 115 lbs |
| REWIND SHAFTS | 2 (1 swing-out) |
| REAR REWIND | Included |
| REAR INLINE SLITTERS | Rotary design |
| MAXIMUM TEMPERATURE | 140 degrees F |
| HEAT METHOD | Metal alloy heater |
| FILM CORE SIZE | 3" |
| LAMINATING SPEED | 0-20 ft/min |
| PRESSURE ADJUSTMENT | Electric Servo Motor |
| OUTPUT HEIGHT | 38" |
| FOOT PEDAL | Included |
| POWER SUPPLY | 120v 60HZ |
| POWER CONSUMPTION | 1440W/12A |
| NET WEIGHT | 675 lbs |
| DIMENSIONS (W x D x H) | 83β x 30.7β x 63β |
| SHIPPING WEIGHT | 908 lbs |
| SHIPPING DIMENSIONS (W x D x H) | 89" x 35" x 58" |
Downloads
Gfp 663TH Top Heat Laminator Specification Sheet
